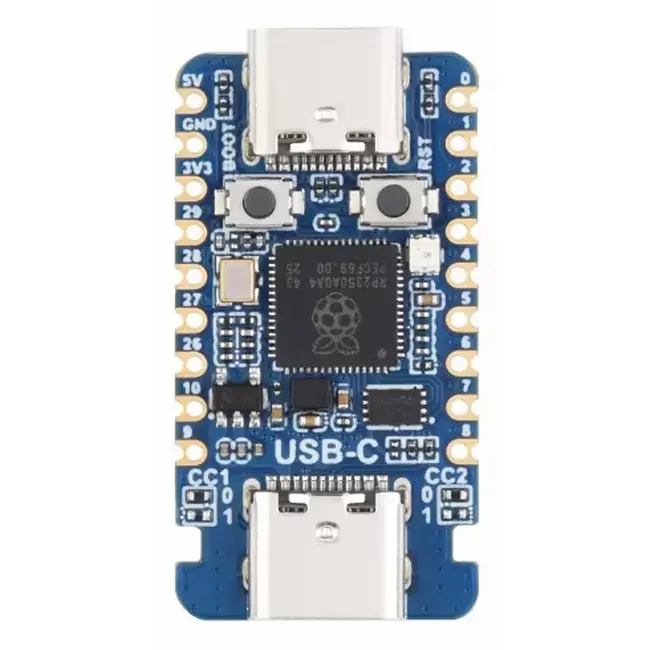

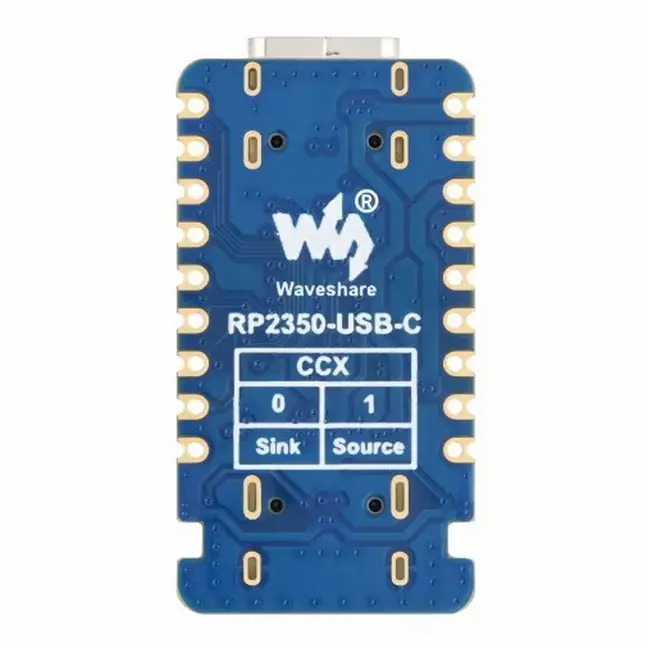

RP2350-USB-C  Mini Development Board with Type-C Port Based on Raspberry Pi RP2350A

Features:

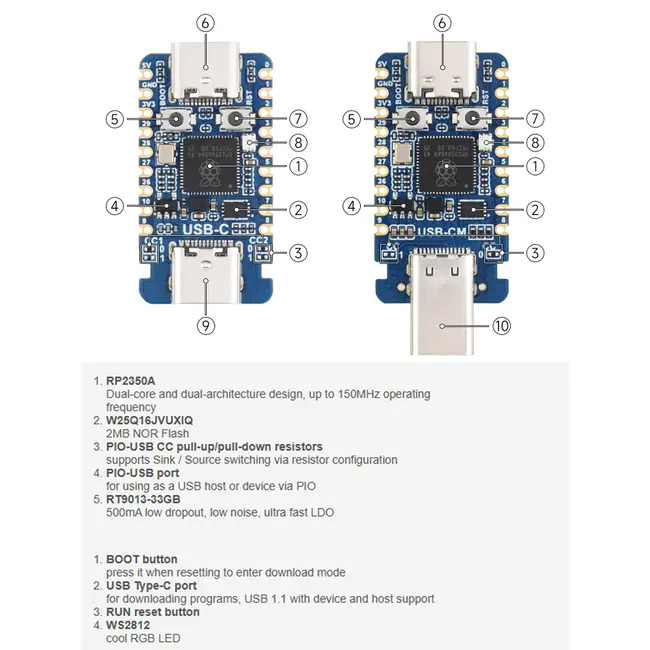

  • Utilises the RP2350A microcontroller chip, designed in-house by Raspberry Pi
  • Features a unique dual-core, dual-architecture design, incorporating a dual-core ARM Cortex-M33 processor and a dual-core Hazard 3 RISC-V processor, with a clock speed of up to 150MHz
  • Includes 520KB of SRAM and 2MB of on-chip Flash
  • Features a Type-C interface, keeping pace with the latest trends and eliminating the need to worry about which way round to plug it in

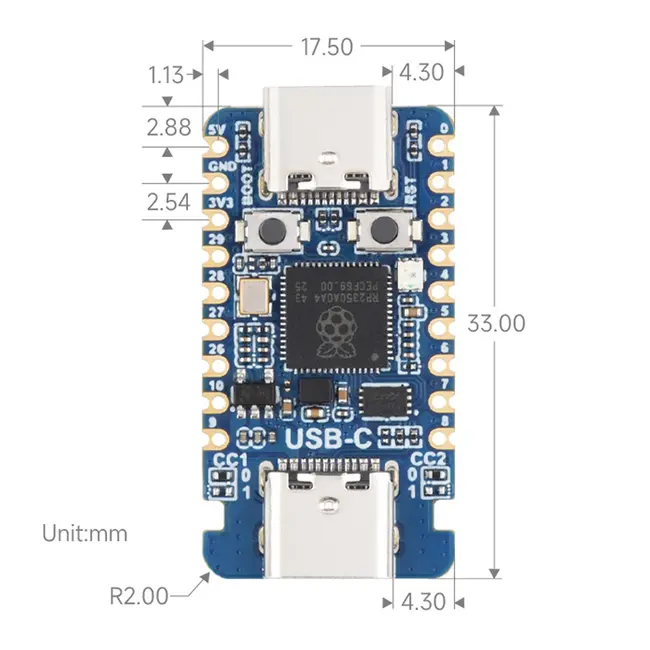

  • Stamp-hole design allows direct soldering onto a user-designed backplane
  • USB 1.1 host and device support
  • One on-board USB expansion port, compatible with USB 2.0/1.1 data transfer
  • Supports low-power sleep and hibernation modes
  • Can be recognised via USB as a mass storage device for drag-and-drop downloads

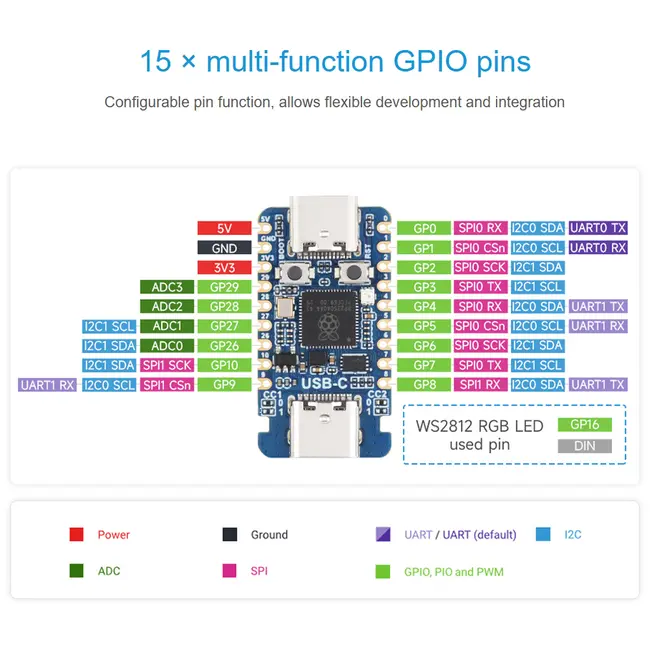

  • 15 * GPIO pins of the RP2350A are exposed
  • 2 * SPI, 2 * I²C, 2 * UART, 4 * 12-bit ADCs, and 14 * controllable PWM channels
  • Precise on-chip clock and timers
  • Built-in temperature sensor and on-chip accelerated floating-point library
  • 12 * programmable I/O (PIO) state machines for custom peripheral support

Package includes:
  • 1 x Development Board
